| 红外CO2气体检测滤光片
Center wavelength 4260±42nm；or：7300±73nm；or：4650±46nm（红外CO）
Half power Bandwidth180±20nm,or 90±20nm；Tpeak≥80%
Out of band blocking(from UV to 11μm):Tmax<1% Tavg<0.1%
火焰探测滤光片
产品规格：LP5.5um,5% Cut-on Wavelength = 5.5μm ± 1%
Wavelength Range = 6.3～14μm；Tavg≥80％
红外截止滤光镜
"IR-CUT被称为红外截止滤光片，应用于CCD/COMS上让可见光透过的同时反射或阻止红外光，被广泛的使用在数字电话，CCTV,PC等摄像系统。红外滤光片一般是在高品质的光学玻璃基板的表面上镀制红外截止膜，它可以有效地抑制由近红外线光引起波动振荡，进而，以使图像清晰，稳定。" ；产品应用：
生化分析，安防监控，光学仪器，红外探测等领域；产品尺寸: dia4.0 –dia80 4.4X4.4-80*80mm
其他尺寸可以定制；标准波长：IRCUT630 IRCUT645 IRCUT650 IRCUT680 IRCUT700 ；其他型号可以根据客户需求定制
长波通滤光片(短波通编号为RPF,反射波长与透过波长与之相对)
一面镀制硬介质长波通滤光膜，另一面镀制增透膜，从而达到高透过率，高损伤阈值的要求；材 料：K9；透 过 率：T>90%；截止深度：OD6；入射角度：0°或45°；光洁 度：20-10；温漂范围：<0.25nm/℃；抗损伤阈值：300MW/cm2CW, 1J/cm2 pulsed
|
开关波长（nm) |
反射波段（nm) |
透过波段(nm) |
尺寸(mm) |
产品编号 |
|
400 |
200-390 |
410-1100 |
ф25.4×2 |
LPF-400-01 |
|
450 |
200-440 |
460-1100 |
ф25.4×2 |
LPF-450-01 |
|
500 |
200-490 |
510-1100 |
ф25.4×2 |
LPF-500-01 |
|
550 |
200-540 |
560-1100 |
ф25.4×2 |
LPF-550-01 |
|
600 |
200-590 |
610-1100 |
ф25.4×2 |
LPF-600-01 |
|
650 |
200-640 |
660-1100 |
ф25.4×2 |
LPF-650-01 |
|
700 |
200-690 |
710-1100 |
ф25.4×2 |
LPF-700-01 |
|
750 |
200-740 |
760-1100 |
ф25.4×2 |
LPF-750-01 |
|
800 |
200-790 |
810-1100 |
ф25.4×2 |
LPF-800-01 |
|
850 |
200-840 |
860-1100 |
ф25.4×2 |
LPF-850-01 |
|
吸收性滤光片，又名“长波通玻璃滤色片”。可用来做带通滤色片，在短波区域（截止带）有着很低的透射，在长波区域（通带）的透射率又很高。
|
型号 |
透过波段(nm) |
截止波段(nm) |
开关波长(nm) |
尺寸(mm) |
|
W-ZJB320-D25.4T2-S |
360-2500 |
200-250 |
320 |
25.4×2 |
|
W-ZJB340-D25.4T2-S |
425-2500 |
200-275 |
340 |
25.4×2 |
|
W-ZJB360-D25.4T2-S |
410-2500 |
200-320 |
360 |
25.4×2 |
|
W-ZJB380-D25.4T2-S |
430-2500 |
200-340 |
380 |
25.4×2 |
|
W-JB400-D25.4T2-S |
600-2500 |
200-350 |
400 |
25.4×2 |
|
W-JB420-D25.4T2-S |
600-2500 |
200-370 |
420 |
25.4×2 |
|
W-JB450-D25.4T2-S |
500-2500 |
200-425 |
450 |
25.4×2 |
|
W-JB470-D25.4T2-S |
510-2500 |
200-450 |
470 |
25.4×2 |
|
W-JB490-D25.4T2-S |
530-2500 |
200-460 |
490 |
25.4×2 |
|
W-JB510-D25.4T2-S |
550-2500 |
200-475 |
510 |
25.4×2 |
|
W-CB530-D25.4T2-S |
550-2500 |
200-500 |
530 |
25.4×2 |
|
W-CB550-D25.4T2-S |
585-2500 |
200-515 |
550 |
25.4×2 |
|
W-CB565-D25.4T2-S |
610-2500 |
200-535 |
565 |
25.4×2 |
|
W-CB580-D25.4T2-S |
620-2500 |
200-550 |
580 |
25.4×2 |
|
W-HB600-D25.4T2-S |
635-2500 |
200-550 |
600 |
25.4×2 |
|
W-HB610-D25.4T2-S |
660-2500 |
200-570 |
610 |
25.4×2 |
|
W-HB630-D25.4T2-S |
670-2500 |
200-590 |
630 |
25.4×2 |
|
W-HB640-D25.4T2-S |
680-2500 |
200-610 |
640 |
25.4×2 |
|
W-HB650-D25.4T2-S |
695-2500 |
200-615 |
650 |
25.4×2 |
|
W-HB670-D25.4T2-S |
725-2500 |
200-635 |
670 |
25.4×2 |
|
W-HB685-D25.4T2-S |
745-2500 |
200-655 |
685 |
25.4×2 |
|
W-HB700-D25.4T2-S |
750-2500 |
200-670 |
700 |
25.4×2 |
|
W-HB720-D25.4T2-S |
775-2500 |
200-685 |
720 |
25.4×2 |
|
W-HWB760-D25.4T2-S |
820-2500 |
200-705 |
760 |
25.4×2 |
|
W-HWB780-D25.4T2-S |
820-2500 |
200-745 |
780 |
25.4×2 |
|
W-HWB800-D25.4T2-S |
845-2500 |
200-760 |
800 |
25.4×2 |
|
W-HWB830-D25.4T2-S |
875-2500 |
200-780 |
830 |
25.4×2 |
|
W-HWB850-D25.4T2-S |
900-2500 |
200-810 |
850 |
25.4×2 |
激光波长滤光片
环境实验条件: Per Mil-STD-810E, Method 507.3
使用温度: -40℃- +60℃
最小尺寸：Φ2mm or 2mmX2mm
最大尺寸：Φ50mm or 55X55mm
表面质量: 80/50 scratch/dig per Mil-O-13830A
激光损伤阈值：20J/cm2,10ns pulse
常用激光波长：488,532,632.8,788,808,980,1064,1570nm
|
激光 |
中心波长（nm） |
半宽(nm) |
峰值透过率 |
截止深度 |
典型尺寸 |
产品编号 |
|
Hg |
254±2 |
10±2 |
T＞15% |
OD5@200-1200nm |
D25.4 |
LF-254-01 |
|
Nd:YAG |
266±2 |
10±2 |
T＞15% |
OD5@200-1200nm |
D25.4 |
LF-266-01 |
|
|
280±2 |
10±2 |
T＞15% |
OD5@200-1200nm |
D25.4 |
LF-280-01 |
|
N2 |
337.1±2 |
10±2 |
T＞15% |
OD5@200-1200nm |
D25.4 |
LF-337-01 |
|
XeF |
352±2 |
10±2 |
T＞15% |
OD5@200-1200nm |
D25.4 |
LF-352-01 |
|
|
355±2 |
10±2 |
T＞15% |
OD5@200-1200nm |
D25.4 |
LF-355-01 |
|
|
380±2 |
10±2 |
T＞70% |
OD5@200-1200nm |
D25.4 |
LF-380-01 |
|
InGaN |
410±2 |
10±2 |
T＞70% |
OD4@200-1100nm |
D25.4 |
LF-410-01 |
|
Cd |
441.6±2 |
10±2 |
T＞70% |
OD4@200-1100nm |
D25.4 |
LF-442-01 |
|
InGaN |
450±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-450-01 |
|
InGaN |
450±2 |
20±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-450-02 |
|
|
468±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-468-01 |
|
Ar |
488±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-488-01 |
|
Argon-Ion |
515±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-515-01 |
|
Nd-YAG |
532±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-532-01 |
|
HeNe |
632.5±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-633-01 |
|
Kr |
647.1±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-647-01 |
|
O2 |
656±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-656-01 |
|
GaAlAs |
670±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-670-01 |
|
|
675±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-675-01 |
|
RuBy |
694.3±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-694-01 |
|
GaAlAs |
730±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-730-01 |
|
GaAlAs |
750±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-750-01 |
|
GaAlAs |
780±2 |
10±2 |
T＞80% |
OD4@200-1100nm |
D25.4 |
LF-780-01 |
|
GaAlAs |
808±2 |
10±2 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-808-01 |
|
GaAlAs |
808±2 |
20±2 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-808-02 |
|
GaAlAs |
830±2 |
10±2 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-830-01 |
|
GaAlAs |
830±2 |
20±2 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-830-02 |
|
GaAlAs |
850±2 |
10±2 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-850-01 |
|
GaAlAs |
880±2 |
40±4 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-880-01 |
|
GaAlAs |
905±2 |
40±4 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-905-01 |
|
GaAlAs |
940±2 |
40±4 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-940-01 |
|
|
980±2 |
40±4 |
T＞80% |
OD4@200-1200nm |
D25.4 |
LF-980-01 |
|
Nd-YAG |
1064±2 |
10±2 |
T＞80% |
OD4@200-1200nm/OD3@1200-1700nm |
D25.4 |
LF-1064-01 |
|
HeNe IR |
1152±2 |
10±2 |
T＞80% |
OD4@200-1200nm/OD3@1200-1700nm |
D25.4 |
LF-1152-01 |
|
InGaAsP |
1310±2 |
30±2 |
T＞80% |
OD4@200-1200nm/OD3@1200-1700nm |
D25.4 |
LF-1310-01 |
|
Nd-YAG |
1320±2 |
30±2 |
T＞80% |
OD4@200-1200nm/OD3@1200-1700nm |
D25.4 |
LF-1320-01 |
|
|
1480±2 |
30±2 |
T＞80% |
OD4@200-1200nm/OD3@1200-1700nm |
D25.4 |
LF-1480-01 |
|
HeNe IR |
1532±2 |
30±2 |
T＞80% |
OD4@200-1200nm/OD3@1200-1700nm |
D25.4 |
LF-1523-01 |
|
InGaAsP |
1550±2 |
30±2 |
T＞80% |
OD4@200-1850nm |
D25.4 |
LF-1550-01 |
|
优化型 |
|
|
|
|
|
|
|
激光 |
中心波长（nm） |
半宽(nm) |
峰值透过率 |
截止深度 |
典型尺寸 |
产品编号 |
|
GaAlAs |
808±2 |
10±2 |
T＞90% |
OD5@200-1150nm |
D25.4 |
LF-808-03 |
|
GaAlAs |
830±2 |
10±2 |
T＞90% |
OD5@200-1150nm |
D25.4 |
LF-830-03 |
|
GaAlAs |
850±2 |
10±2 |
T＞90% |
OD5@200-1200nm |
D25.4 |
LF-850-02 |
|
GaAlAs |
880±2 |
10±2 |
T＞90% |
OD5@200-1200nm |
D25.4 |
LF-880-02 |
|
GaAlAs |
905±2 |
10±2 |
T＞90% |
OD5@200-1200nm |
D25.4 |
LF-905-02 |
|
GaAlAs |
940±2 |
10±2 |
T＞90% |
OD5@200-1200nm |
D25.4 |
LF-940-02 |
|
|
980±2 |
10±2 |
T＞90% |
OD5@200-1200nm |
D25.4 |
LF-980-02 |
|
Nd-YAG |
1064±2 |
10±2 |
T＞90% |
OD5@200-1200nm |
D25.4 |
LF-1064-02 |
|
HeNe IR |
1152±2 |
15±2 |
T＞90% |
OD5@200-1500nm |
D25.4 |
LF-1152-02 |
|
InGaAsP |
1310±2 |
15±2 |
T＞90% |
OD5@200-1500nm |
D25.4 |
LF-1310-02 |
|
Nd-YAG |
1320±2 |
15±2 |
T＞90% |
OD5@200-1500nm |
D25.4 |
LF-1320-02 |
|
|
1480±2 |
15±2 |
T＞90% |
OD5@200-1500nm |
D25.4 |
LF-1480-02 |
|
HeNe IR |
1532±2 |
15±2 |
T＞90% |
OD5@200-1600nm |
D25.4 |
LF-1523-02 |
|
InGaAsP |
1550±2 |
15±2 |
T＞90% |
OD5@200-1800nm |
D25.4 |
LF-1550-02 |
|
5nm窄带 |
|
|
|
|
|
|
|
Nd-YAG |
532±1 |
5±1 |
T＞70% |
OD4@200-1100nm |
D25.4 |
LF-532-02 |
|
HeNe |
632.5±1 |
5±1 |
T＞70% |
OD4@200-1100nm |
D25.4 |
LF-633-02 |
|
Kr |
647.1±1 |
5±1 |
T＞70% |
OD4@200-1100nm |
D25.4 |
LF-647-02 |
|
GaAlAs |
750±1 |
5±1 |
T＞70% |
OD4@200-1100nm |
D25.4 |
LF-750-02 |
|
GaAlAs |
780±1 |
5±1 |
T＞70% |
OD4@200-1100nm |
D25.4 |
LF-780-02 |
|
GaAlAs |
808±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-808-04 |
|
GaAlAs |
830±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-830-04 |
|
GaAlAs |
850±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-850-03 |
|
GaAlAs |
880±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-880-03 |
|
GaAlAs |
905±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-905-03 |
|
GaAlAs |
940±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-940-03 |
|
|
980±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-980-03 |
|
Nd-YAG |
1064±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-1064-03 |
|
HeNe IR |
1152±1 |
5±1 |
T＞70% |
OD4@200-1200nm |
D25.4 |
LF-1152-03 |

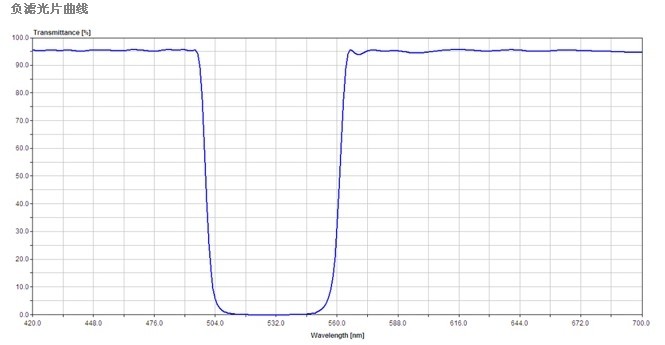

负滤光片
|
中心波长(nm) |
半带宽(nm) |
中心截止深度 |
平均透过率 |
尺寸（mm） |
产品编号 |
|
405±4 |
50±5 |
>OD4 |
Tave>90%@350-600nm |
∅25.4 |
NF-405-01 |
|
442±4 |
50±5 |
>OD4 |
Tave>90%@350-650nm |
∅25.4 |
NF-442-01 |
|
488±5 |
60±5 |
>OD4 |
Tave>90%@380-720nm |
∅25.4 |
NF-488-01 |
|
514±5 |
60±5 |
>OD4 |
Tave>90%@400-750nm |
∅25.4 |
NF-514-01 |
|
526±5 |
60±6 |
>OD4 |
Tave>90%@400-780nm |
∅25.4 |
NF-526-01 |
|
532±5 |
60±8 |
>OD4 |
Tave>90%@430-780nm |
∅25.4 |
NF-532-01 |
|
568±6 |
70±8 |
>OD4 |
Tave>90%@430-800nm |
∅25.4 |
NF-568-01 |
|
594±6 |
70±8 |
>OD4 |
Tave>90%@440-850nm |
∅25.4 |
NF-594-01 |
|
633±6 |
75±8 |
>OD4 |
Tave>90%@470-900nm |
∅25.4 |
NF-633-01 |
|
785±8 |
95±8 |
>OD4 |
Tave>90%@580-1100nm |
∅25.4 |
NF-785-01 |
|
808±8 |
95±8 |
>OD4 |
Tave>90%@600-1150nm |
∅25.4 |
NF-808-01 |
|
830±8 |
100±8 |
>OD4 |
Tave>90%@610-1180nm |
∅25.4 |
NF-830-01 |
|
1064±11 |
120±10 |
>OD4 |
Tave>90%@780-1500nm |
∅25.4 |
NF-1064-01 |
 |
